EZ Flow

PLACING MATERIAL JUST GOT EASIER

VOLUME

3 Yards/Min

SLINGING DISTANCE

120 Ft

CAPACITY

18 Yards

Overview

Although it looks similar to a traditional slinger truck, the EZ Flow is anything but typical. Packed full of new innovations like a skirtless hopper, newly designed Hardox steel body, and completely reengineered hydraulic package. The EZ Flow is the new standard of slinger trucks.

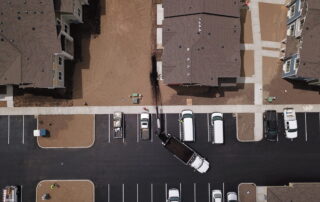

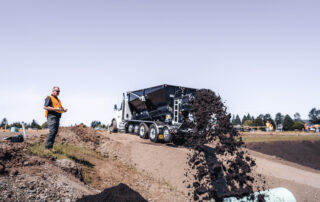

Targeted
Material Placement

Built to handle a variety of materials with our newly designed body made of dent resistant 450 Hardox Steel. The EZ Flow’s 30” exposed feed floor coupled with the nearly vertical sidewalls allows for placing a wide variety of materials with ease.

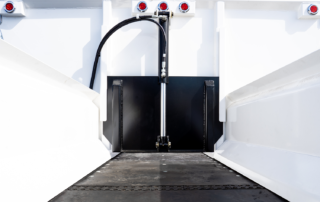

Skirtless Rubber
Feed Floor

Introducing the first ever, patent pending, skirtless rubber feed floor to the Slinger market. Traditional slingers use skirt rubber to seal material between the hopper feed floor. This is one of the most time consuming maintenance items on a slinger.

The skirtless hopper eliminates all of that maintenance, while maintaining a tight seal and increasing efficiency and feed floor longevity.

Designed
for Operators

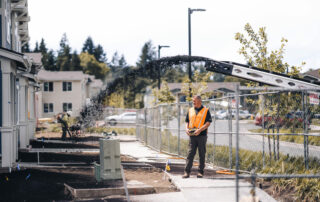

Experience ultimate control and precision placement with the newly redesigned hydraulics and control package for best-in-class responsiveness.

The easy-to-use remote control system provides the operator with steady control and smooth placement of materials. When adding a remote drive system, the EZ Flow comes with forward and reverse creep modes for easy maneuvering.

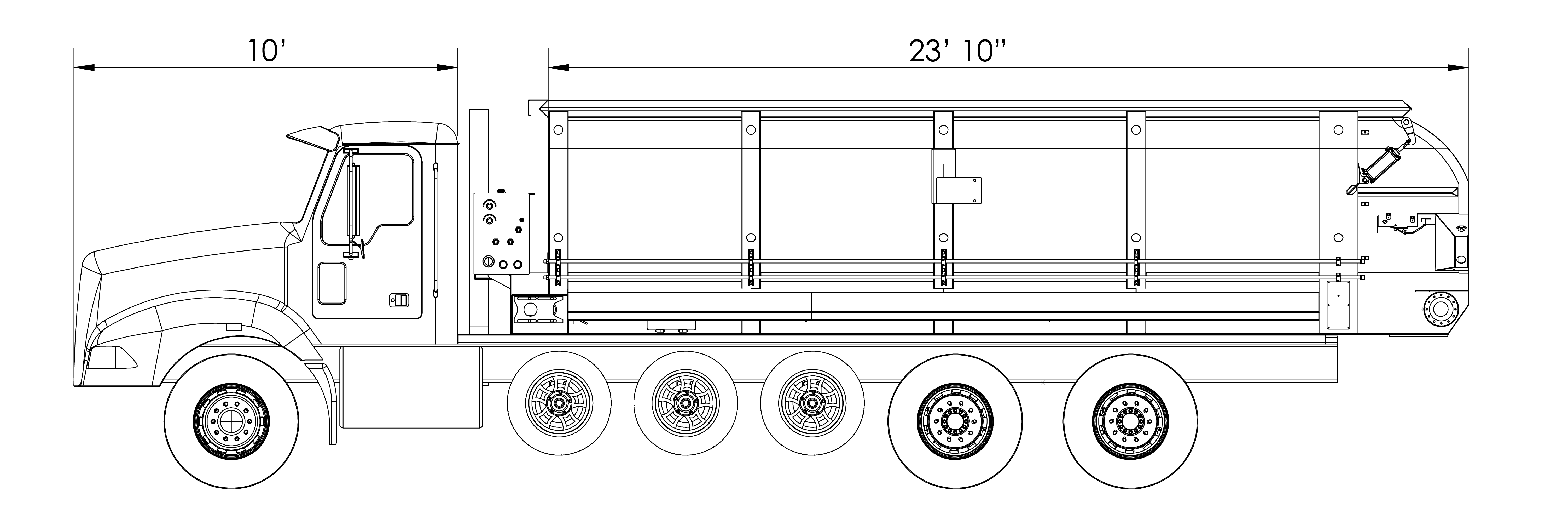

EZ Flow Specifications

Available in one model size:

  • EZ Flow 18 – 18 Cubic Yards

Chassis is customer specified

  • 450 HARDOX™ Steel
  • Spring Body Mounted
  • Powder Coated Finish
  • Tarp – Electric Cable or Swing Arm
  • Vibrator
  • Heavy-Duty 30” Exposed 330 3-Ply Abrasive & Impact Resistant Belt
  • Hydraulically Powered
  • Planetary Gear Main Driver
  • 2.25” Pitch Pintle Chain
    • 52,000 lbs. Pulling Strength
  • Rear Leveling Gate
  • HD 14” Abrasive & Impact Resistant Belt
  • Tube Steel Design
  • Hydraulic Drive Super-Shield™
  • High Performance Rear Mounted Direct Drive
  • Patented Worm Gear PC Swing
  • Performance Specifications:
    • FPM: 4,400 – 4600
      MPH: 47 – 51
      Volume: 2-3 Yards Per Minute
      Distance: Up to 120’
  • High-Pressure PTO Mounted 500 BAR Closed Loop Hydraulic Pump Integrated with 3,500 PSI Rated Rear Pump
  • Pressure & Return Filtration Systems
    • Pressure Filter Rating – 10 Microns
    • Return Filter Rating – 3 Microns
  • HAWE Proportional Valves
  • High Pressure Hoses & Fittings: 2,000 – 6,000 PSI
  • 12 or 24 VDC
  • OMNEX Radio & Receiver Control Package
    • Wireless Remote Controlled Placing
    • Maximum Effective Range – 900 ft @ 2.4 GHz
  • Equipped with Frequency Hopping Spread Spectrum (FHSS) Technology
    • Frequency Hopping @ 50 Non-Overlapping Channels in 100kHz Intervals (100,000 Times per Second)
  • Chassis
    • Rear Fenders [ Poly, Aluminum or Stainless Steel ]
    • Tool Box [ Aluminum or Stainless Steel ]
    • Remote Control/Wireless Ground Drive System
    • Motion Alarm
  • Hopper
    • Tarp: Electrical Cable Slide or Swing Arm System
    • Trenching Attachment
    • Performance Package
